Atomos Shinobi 7" 4K HDMI/SDI Monitor
Add a bright, high-resolution monitor to view your 4K/2K footage from a cinema camera such as a Z CAM E2, Panasonic BGH1, or RED KOMODO with the Shinobi 7" 4K HDMI/SDI Monitor from Atomos. This 7" on-camera monitor features a 1920 x 1080 10-bit FRC IPS display with a brightness of 2200 cd/m², which makes it suitable for use in both exterior and interior conditions. This larger model improves on the original Shinobi as it adds 3G-SDI input and loop output up to 2K60, HDMI 2.0 input and loop output up to 4K60, signal cross conversion, a camera control port, dual L-series battery slots, and future possibilities with its built-in USB and RJ45 ports.
The touchscreen Shinobi 7 runs the latest AtomOS firmware that features a variety of onscreen analysis tools such as multi-scope views, exposure, framing, focus assist, waveform, RGB parade, and histogram tools. It also features an SDI card input to load custom 3D LUTs, and it supports SDR and HDR viewing. The AtomHDR display technology allows you to accurately monitor your log gamma footage without having to view flat, washed-out images or use a LUT to compress the dynamic range and color space. The monitor supports popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras.
It also supports camera control using its 2.5mm control port and optional cables, and it currently supports control of the Z CAM E2 series of cinema cameras. Built to withstand the rigors of production, the Shinobi 7 features a lightweight chassis and powers from a dual L-series battery plate or using the included power adapter.
AtomHDR
With AtomHDR you can monitor up to ten stops of dynamic range of your camera's LOG image. Most conventional monitors can only display six or seven stops, which is fine for standard footage; but a Log image will look overly flat. It is also superior to monitoring with a loaded LUT, which can clip the highlights and mask shadows.
Supported Log Formats
ARRI Log CEI160 / CEI200 / CEI250 / CEI320 / CEI400 / CEI500 / CEI640 / CEI800 / CEI1000 / CEI1280 / CEI1600
Canon CLog / CLog 2 / CLog 3
Fuji F-Log
JVC JLog
Nikon N-Log
Sony SLog / SLog2 / SLog3
Panasonic Vlog
RED Log3G10 / RED LogFilm
PQ10k
HLG
HDR Monitoring
Sony SGamut / SGamut3 / SGamut3.cine
Canon Cinema / DCI P3 / DCI P3+
Panasonic V Gamut
ARRI ALEXA Wide Gamut
Rec. 709 / BT.2020
JVC
RED WideGamut / RED DragonColor / DragonColor2
RED Color2 / RED Color3 / RED Color4
DCI/UHD 4K and 2K Input/Output
Monitor 4K footage in DCI or UHD formats via HDMI 2.0 up to 60 fps and up to 2K60 via 3G-SDI.
Output signal via HDMI and 3G-SDI loop outputs.
The Shinobi 7 features HDMI/SDI cross conversion support.
Audio Monitoring
Input/output audio via HDMI and output audio using the 3.5mm headphone port for convenient audio monitoring.
7" Daylight Viewable Screen
The Shinobi 7 features a 7" IPS LCD 1920 x 1080 screen that is illuminated by a bright 2200 cd/m² LED backlight, making it possible to view in daylight without requiring a hood. Plus, the screen is also color calibrated from the factory to ensure accurate image representation.
HDR Signal Management
Log and HDR signals can be difficult to monitor with conventional equipment. With the Shinobi's built-in HDR signal management functions, the log signal can be converted to the PQ standard for compatibility with existing consumer and professional HDR equipment.
Power Options

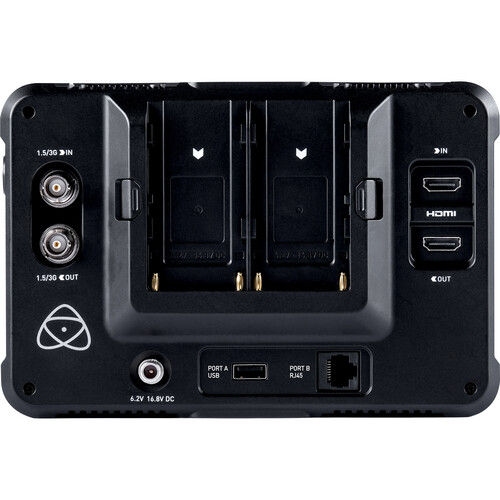

The back of the monitor features dual L-series battery slots for longer shoot durations, and a universal power adapter is also included.
Camera Control
The monitor features a 2.5mm control port that currently supports control of Z CAM E2 series cinema cameras, while future camera control support is pending.
Anamorphic De-Squeeze
The Shinobi 7 supports anamorphic de-squeeze, allowing you to comfortably view anamorphic footage with a squeeze of 2x, 1.5x, 1.33, and Panasonic's 8:3.
3D LUT Management
An SD card slot allows you to load custom 3D LUTs and apply them to both input and output signals.
